Blackmagic PYXIS 12K
£180
/ day ex VAT
Sensor size
FF
Lens mount
L, EF, PL
Max resolution
12K
Max frame rate
40fps (12K OG), 72fps (8K 3:2)
Recording formats
Blackmagic RAW, H.264 proxy

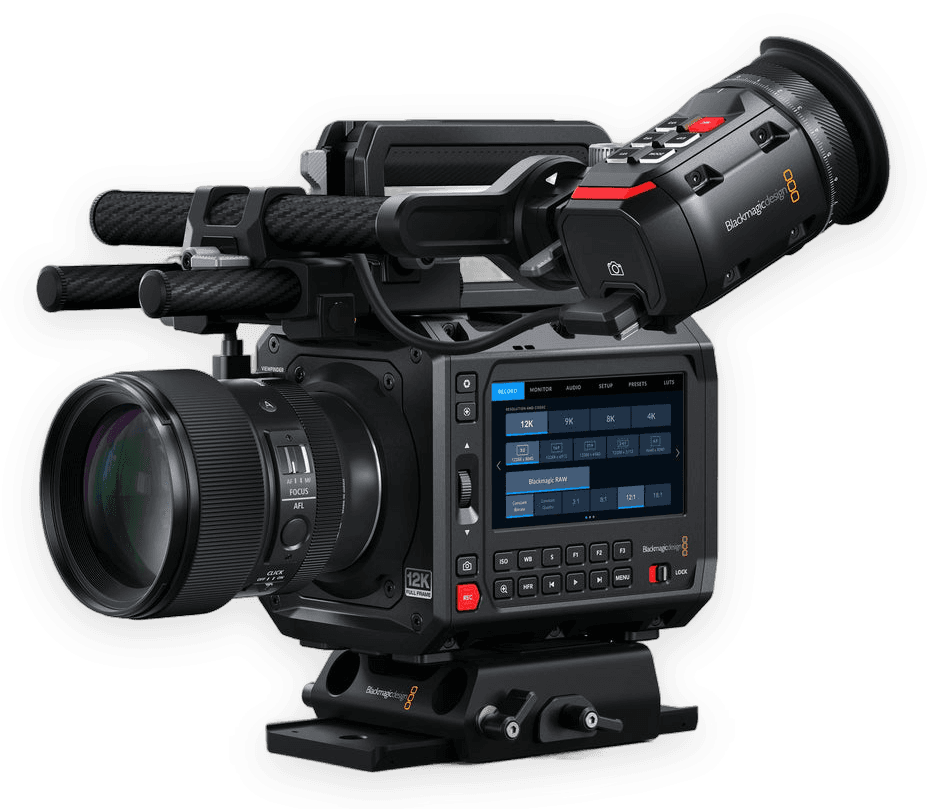

The Blackmagic PYXIS 12K is a full-frame 12K cinema camera body built to be rigged, with a modular side-plate design instead of a fixed shape. It records Blackmagic RAW from a 12,288 x 8,040 RGBW sensor, which suits productions that want large-format detail with room to reframe, or a body that can sit in a cage, on a gimbal or in a compact car rig.
This kit is built around the L-Mount body and is supplied with Metabones PL to L-Mount and Sigma MC-21 EF to L-Mount adapters, so PL cine glass and EF stills lenses both fit. The URSA Cine EVF and PYXIS monitor come with their mounts, brackets and cables, and the MID49 and 8Sinn plates, 15mm rods, V-lock plate, batteries and CFexpress cards mean it arrives ready to shoot. Cards are Angelbird 1TB CFexpress Type B.
The sensor records 12K 3:2 open gate up to 40fps, 12K 16:9 up to 45fps, 12K 17:9 up to 50fps and 12K 2.4:1 up to 60fps, with 8K 3:2 up to 72fps. Dynamic range is 16 stops. It has two CFexpress Type B slots and runs from a 18V DC supply drawing around 90W, supplied here with V-lock batteries and a charger.
Blackmagic PYXIS 12K Camera Body
Metabones PL to L-Mount Adapter
Sigma MC-21 EF To L-Mount Adapter
Blackmagic URSA Cine EVF
Blackmagic PYXIS Monitor
Blackmagic PYXIS Monitor Hood
Blackmagic URSA Cine EVF Rod Bracket
Blackmagic URSA Cine EVF Cross Bar Bracket
Blackmagic URSA Cine EVF Swivel Mount
Blackmagic PYXIS Monitor Tilt/Swivel Mount
Blackmagic URSA Cine EVF Extension
Blackmagic URSA Cine EVF Cable Straight - 0.65m
Blackmagic URSA Cine EVF Cable Straight - 0.4m
Blackmagic URSA Cine EVF Cable Right Angle - 0.4m
Blackmagic URSA Cine EVF Cable Right Angle - 0.25m
Blackmagic URSA Cine Top Handle
8Sinn PYXIS Top Plate
MID49 PYXIS Right Side Plate
MID49 XLR Audio Breakout Box
MID49 PYXIS Baseline 15mm LW Baseplate
MID49 ARCA Swiss Camera Plate
SmallRig ARRI Dovetail Plate
MID49 Bottom Dovetail Adapter
2× 15mm Support Rod - 300mm/12"
2× 15mm Support Rod - 130mm/5"
Tilta PYXIS V-Lock Battery Plate
2× CFExpress Type B - 1TB - Angelbird - 1785MB/s
CFExpress Type B Card Reader
2× IDX Imicro-150 V-Lock Battery
IDX VL-2X Sequential 2-Channel V-Mount Charger
SDI Cable - 2m
SDI Cable < 1m
D-Tap to 2-Pin Lemo
2-Pin Lemo Power Supply Unit
USB-C to USB-C Cable
15v DC Power Supply
IEC Figure 8 Cable
Sensor
Sensor | Full frame, 12,288 x 8,040 RGBW, with optical low pass filter |
Dynamic range | 16 stops |
Recording
Format | Resolution | Max frame rate |
|---|---|---|
12K 3:2 open gate | 12,288 x 8,040 | 40 fps |
12K 16:9 | 12,288 x 6,912 | 45 fps |
12K 17:9 | 12,288 x 6,480 | 50 fps |
12K 2.4:1 | 12,288 x 5,112 | 60 fps |
9K 3:2 | 9,408 x 6,264 | 50 fps |
8K 3:2 | 8,192 x 5,360 | 72 fps |
4K 2.4:1 | 4,096 x 1,704 | 112 fps |
Codecs | Blackmagic RAW (3:1 to 18:1), H.264 proxy |
Media | 2 x CFexpress Type B, optional USB-C external drive |
Lens mount
Mount | L-Mount (active); EF and PL versions also exist. This kit uses the L-Mount body with PL and EF adapters |
Power
Input | External 18V DC, 90W |
